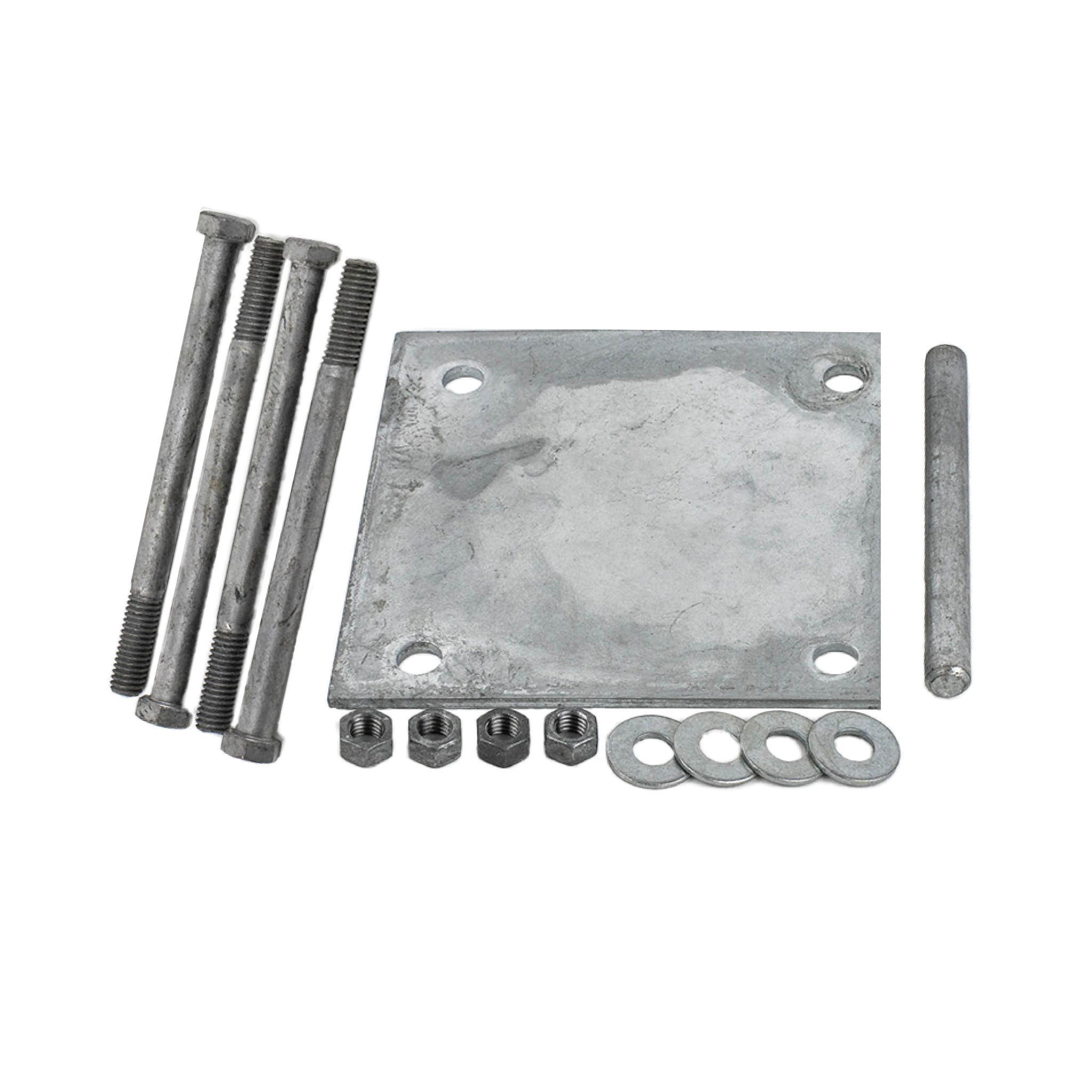

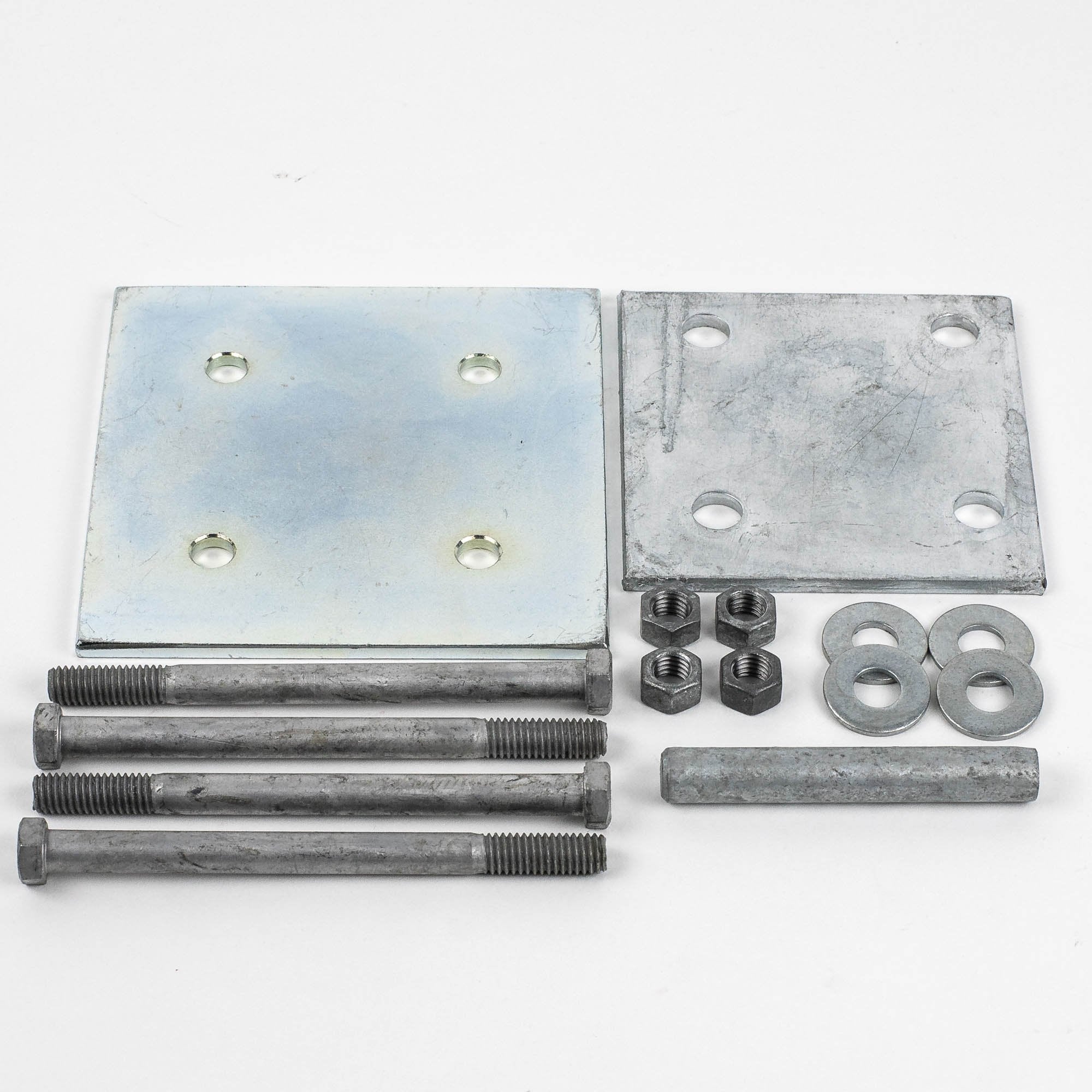

Wood Install Kit for Structural Post Anchor

To achieve the maximum load ratings when installing the Structural Wood Post Anchor on a wooden deck, it’s crucial to pair it with the Titan Wood Install Kit.

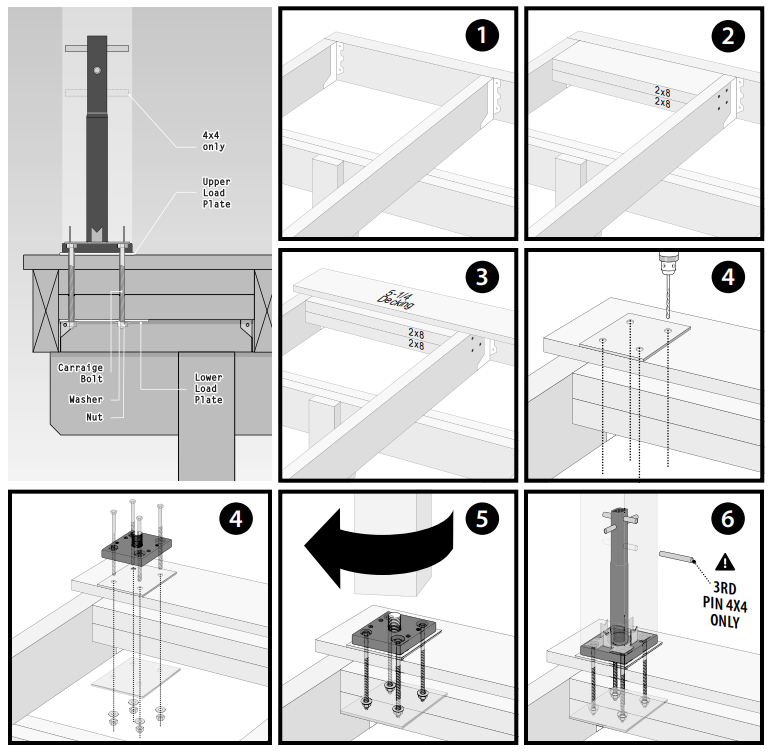

One plate installs directly beneath the post anchor, while two 2×8 blocking boards and a standard 5-1/4″ deck board are placed between the plates. The four bolts pass through both plates and blocking, effectively sandwiching the structure for added rigidity. This setup dramatically increases stability and load capacity, ensuring your post performs at its full potential.
